Bracket Type | Fixed adjustable bracket |
model: | MK-RM100 Series |
Specification: | 1*26, 1*52, 1*78 |
Adjustment angle range and accuracy | 0-60° infinitely adjustable, accuracy ± 2° (customized according to project conditions) |
Adjustment device | Push rod + support rod |
Number of system components | Up to 60 modules (depending on the number of strings) |
Pile foundation form | Precast piles/cast-in-place piles/hammer-driven piles |
Adjustment method | Power tool or manual adjustment |
Wind-resistant design | The bracket balance structure and push rod + support rod system make the bracket more wind-resistant and the adjustment device have a longer service life. |
System Advantages | Best price/performance ratio recommendation |

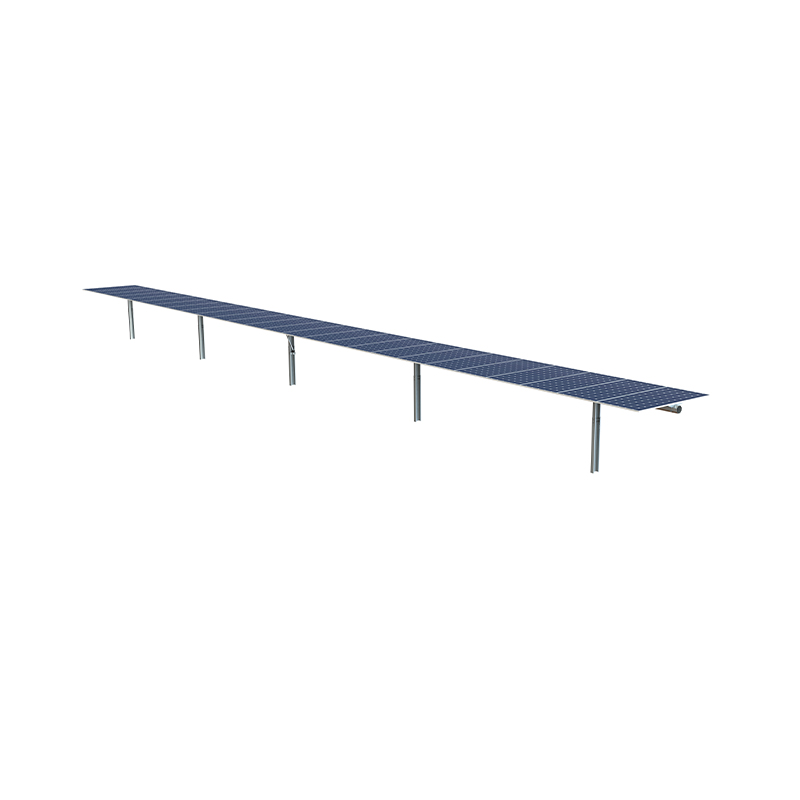

illustrate | MK-RM100 series products are suitable for various photovoltaic modules, and can support the installation of 1*10 to 1*78 single-row modules. Each row is equipped with a set of manual tilt angle switching devices. The tilt angle switching range is 0°-60°, which is actually determined according to the owner's requirements. |
